Fully Automatic

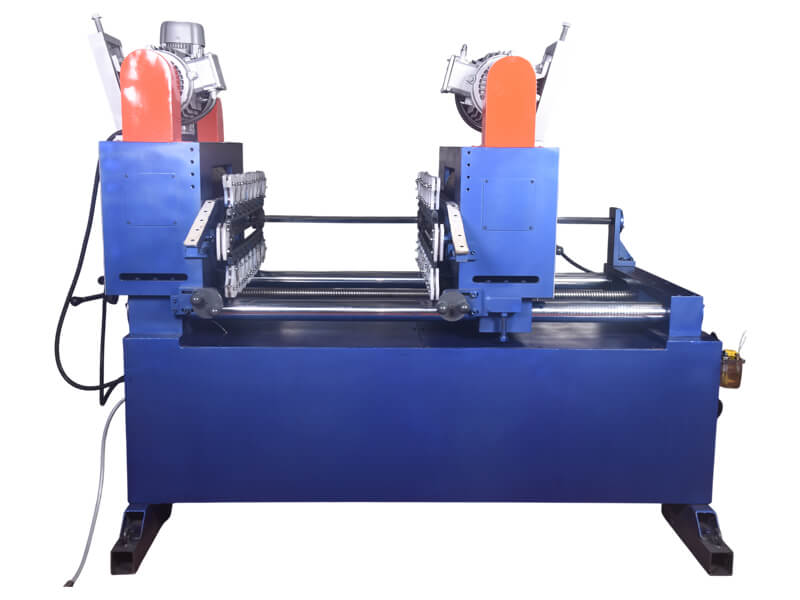

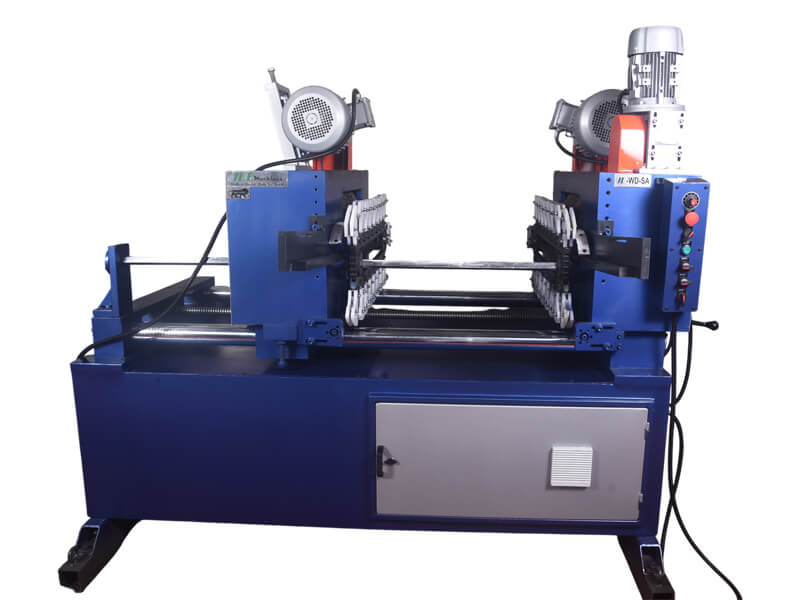

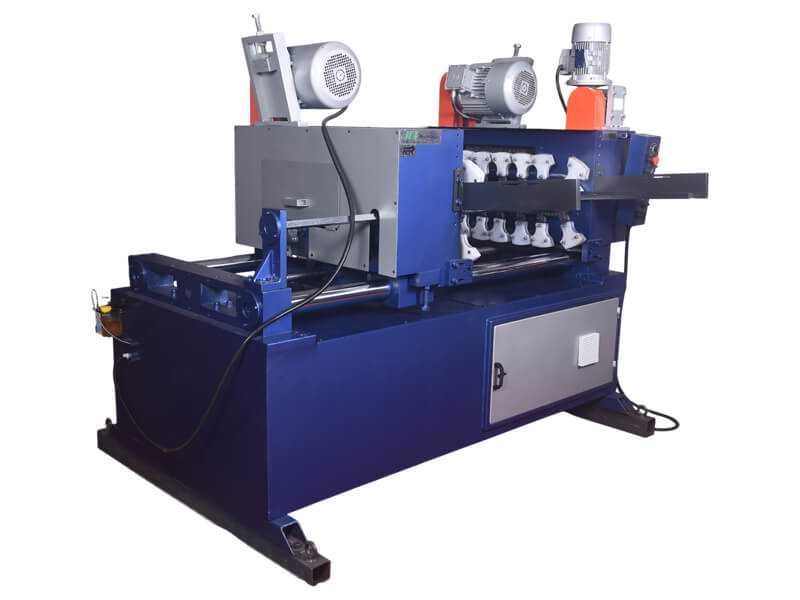

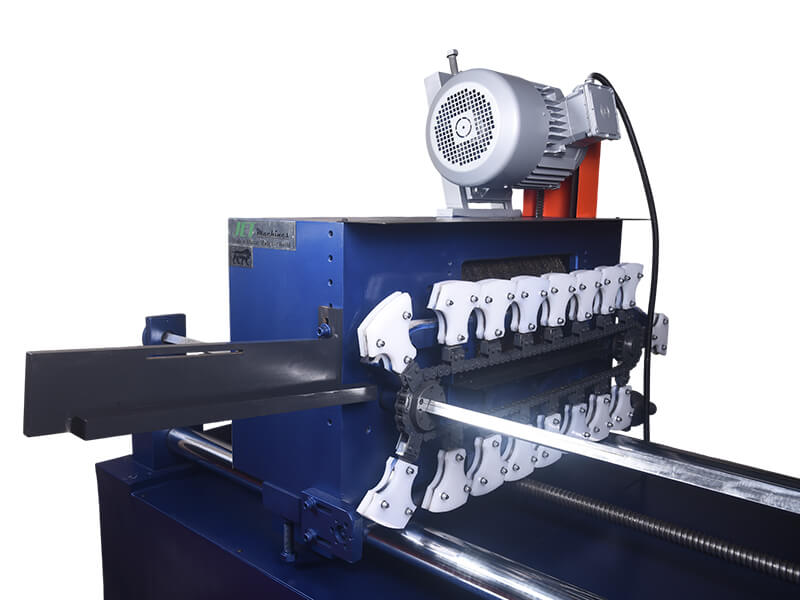

JE Fully Automatic Wire Deburring Machine
- Fully Automatic Wire Deburring Machine
- High-Speed Automatic Operation</strong
- Consistent Deburring Quality
- Automatic Wire Feeding System
- Suitable for Continuous Production
- Heavy-Duty Industrial Construction
- Adjustable Deburring Mechanism
- Quick Size Changeover
- Low Maintenance Design
- Energy-Efficient Performance
- Easy to Operate
- Enhanced Operator Safet
- Suitable for Multiple Wire Materials
- Improves Product Quality
- Reduces Manual Labor
- One-Touch Automatic Cycle
- Continuous Automatic Processing
- Minimal Operator Intervention
- Smooth and Reliable Performance
Floor
Technical
| Main Motor | 7.5 Hp (1400 rpm) X 2 Nos. | |
|---|---|---|
| Minimum Operating Length | 200 mm For 15-20 mm OD, 250 mm length required |
|
| Maximum Operating Length | 1000 mm | |
| Brush Size | 12” X 18” | |
| Gross Weight | 2.8 Ton | |

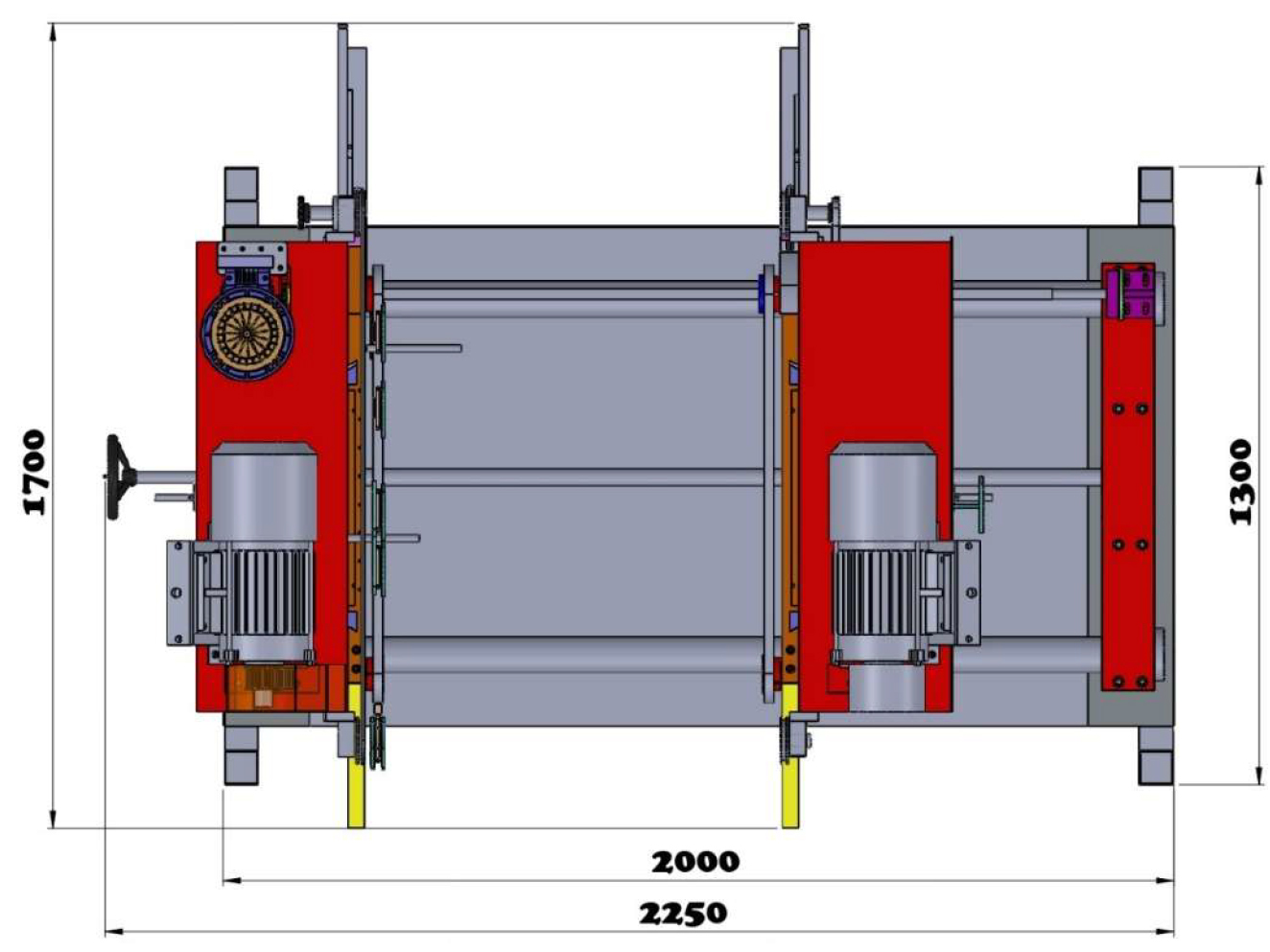

| Floor Dimensions | 2300 X 1400 X 1650 mm | |
| Production Rate | 50 piece /min (may vary as per pipe size) |
|
| Operating Size | ||
| Round Tube | Minimum | 15 mm |
| Maximum | 60 mm | |
| Square Tube |
Minimum | 15 X 15 mm |
| Maximum | 60 X 60 mm | |
| Rectangle Tube |
Minimum | 15 X 20 mm |
| Maximum | 40 X 50 mm | |
